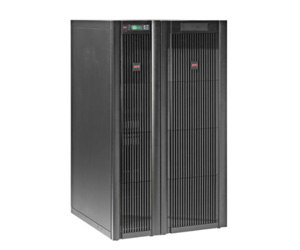

APC Smart-UPS VT 30kVA 400V w/4 Batt. Mod., Start-Up 5X8, Internal Maint Bypass, Parallel Capability (SUVTP30KH4B4S)

Output

Output Power Capacity

24 kW / 30 kVA

Max Configurable Power

24 kW / 30 kVA

Nominal Output Voltage

400V 3PH

Output Voltage Note

Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

Efficiency at Full Load

96.4%

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal

Other Output Voltages

380, 415

Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform Type

Sine wave

Output Connections

(1) Hard Wire 4-wire (3PH + G)
(1) Hard Wire 5-wire (3PH + N + G)
(1) Screw Terminals

Bypass

Built-in Maintenance Bypass, Built-in Static Bypass

Input

Nominal Input Voltage

400V 3PH

Input Frequency

40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations

304 - 477V

Other Input Voltages

380, 415

Maximum Input Current

41A

Input Breaker Capacity

63.0 A

Batteries & Runtime

Battery Type

VRLA

Included Battery Modules

4

Typical recharge time

5 hour(s)

RBC™ Quantity

4

Nominal Battery Voltage

+/-192 V (split battery referenced to neutral)

End of Discharge Battery Voltage

+/-154 V

Extended Run Options

APC Smart-UPS VT 30kVA 400V w/4 Batt. Mod., Start-Up 5X8, Internal Maint Bypass, Parallel Capability

Runtime Graph

Curve	Part Number(s)
A	SUVTP30KH4B4S
B	SUVTP30KH4B4S + (1)SUVTXR2B6S
C	SUVTP30KH4B4S + (1)SUVTXR6B6S
D	SUVTP30KH4B4S + (2)SUVTXR6B6S
E	SUVTP30KH4B4S + (3)SUVTXR6B6S

Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output.

Communications & Management

Interface Port(s)

DB-9 RS-232, Smart-Slot

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Có

Physical

Maximum Height

1499.00 mm

Maximum Width

559.00 mm

Maximum Depth

813.00 mm

Net Weight

629.09 KG

Shipping Weight

660.00 KG

Shipping Height

1643.00 mm

Shipping Width

650.00 mm

Shipping Depth

1062.00 mm

Color

Black

Units per Pallet

1.00

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-999.9 meters

Storage Temperature

-50 - 40 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

55.00 dBA

Online Thermal Dissipation

3685.00 BTU/hr

Protection Class

IP 20

Conformance

Regulatory Approvals

C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-111

Standard Warranty

1 year repair or replace, Start-Up Service
